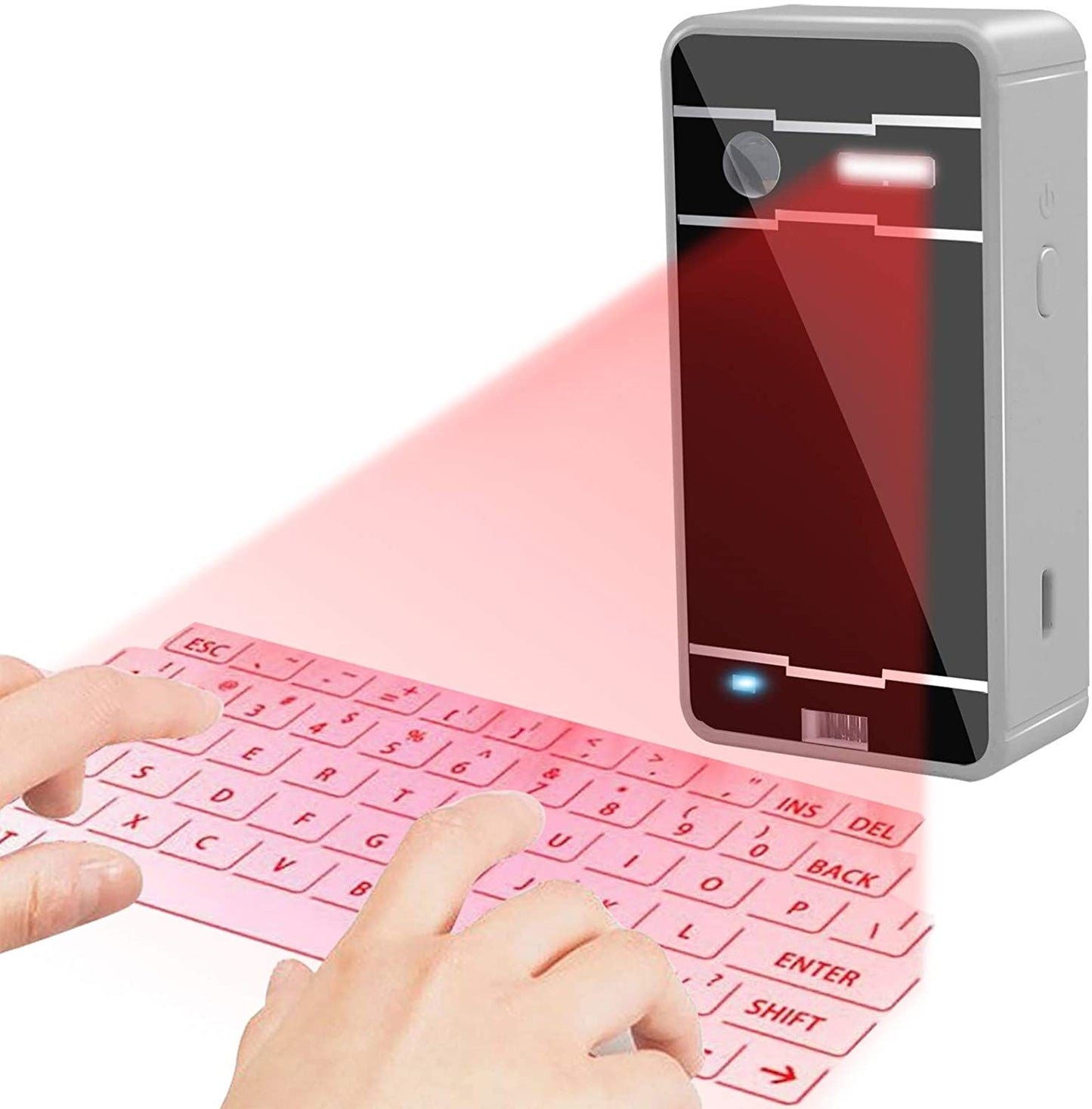

APEX Pro Laser Keyboard

Connecting via Bluetooth

• Projection Keyboard supports Bluetooth HID
• Connection via Bluetooth HID does not require the installation of a separate driver as long as the host device has HID compatibility
• Bluetooth 3.0 or higher is required for connecting to some devices.

Bluetooth HID Compatible Devices

• iOS4 and later
• Android 2.0 and later11
• Windows XP/Vista/7/8 or higher
• Windows Phone 7/8 or higher
• Mac OS (using Keyboard only)

Specification

Pattern Projector Specification Light Source Red Laser Diode Keyboard Layout Approx. 19mm Pitch.
QWERTY Layout Keyboard Size Approx. Width: 240mm, Height: 100mm
Keyboard Location Approx. 80mm from the bottom of the device Project Surface Non-reflective, opaque flat surface Keyboard Sensor Item Specification Recognition Rate Approx. up to 350 characters per minute.

Note
The projection Keyboard will automatically attempt to re-connect to the recently connected devices. If no previous device is found, then it will listen for a new connection with any available HID-compatible device.
